| الاسم التجاري: | GBS |
| رقم الطراز: | GBSFP51200T |
| الـ MOQ: | 1 قطعة |
| السعر: | negotiable |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 1800000 جهاز كمبيوتر في السنة |
| Parameter | Value |
|---|---|
| Nominal voltage | 51.2VDC |
| Nominal capacity | 200Ah |
| Battery energy | 10.24KWh |
| Cutoff charge voltage | 57.6V |
| Cutoff discharge voltage | 46.4V |
| Fast Charge Current | 200A |
| Maximum Discharge Current | 200A |
| Maximum charge power | 10KW |
| Maximum discharge power | 10KW |
| Short circuit current | 504A |

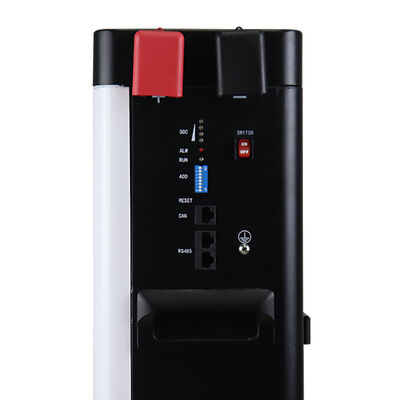

| Display | SOC status indicator, LED indicator |
| Communication | RS485, CAN |
| Dimension (W×D×H) | 450×229×650mm |
| Weight | 92kg |
| Installation | Ground mounted or wall mounted |
| Working temperature | Charge: 0~65℃, Discharge: -20~65℃ |
| Storage temperature | -20~45℃ |
| Relative Humidity | 5%~95% |
| Maximum operating altitude | 4000m |
| IP rating | IP20 |
| Cell type | LiFePO4 |
| Cycle life | 6000 cycles @ 80% DOD/25℃/0.5C |
| Scalability | Max 15 batteries in parallel |
